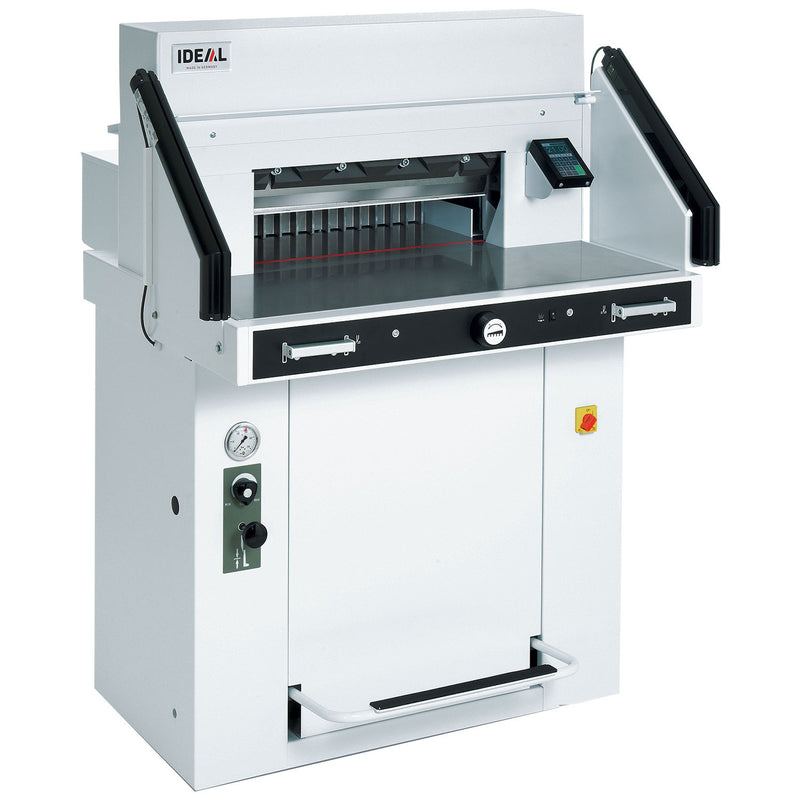

- Professional IDEAL/EBA 5560 hydraulic power guillotine, suitable for on-demand quick cutting.
- Contact us for best price!

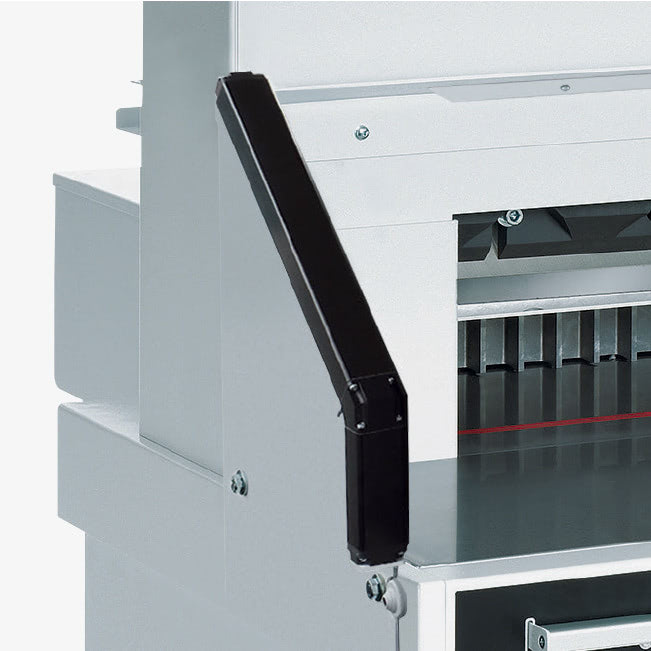

- Includes hydraulic blade and clamp drive, along with safety-light-beam-curtain, for increased productivity.
- Cutting length up to 550mm and a cutting height of 95mm.
- Comprehensive SCS safety package.
- Foot pedal for pre-clamping or as mechanical cutting line indicator.

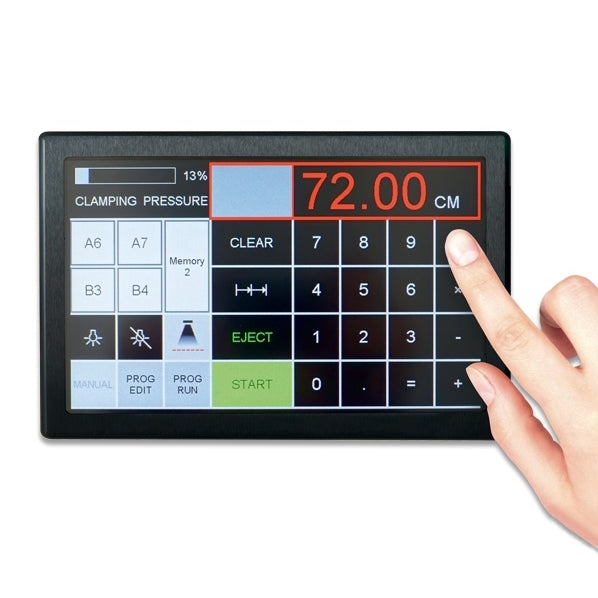

- Electric back-gauge drive with touch pad for easy setting, multilingual operator guidance and digital display.
- 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step).
- Pre-programmed measurements for A3 to A6 paper sizes.
- Self-diagnostic system with error indication on display.
- Hydraulic swing cut for high cutting precision.
- Complete with practical tool holder and stacking angle.
- Price shown is ex-works (i.e. excludes delivery, installation, or training - if required).
- Cutting length: 550mm. Cutting height: 95mm.
- Narrow cut: 32mm.
- Table depth: 5700mm.
- Narrow cut with false clamp installed: 60mm.
- Power supply: 230V / 50Hz / 1~ (other voltages available).
- Motor performance (input capacity: 1.5kW.
- Dimensions: H 1370 x W 1070 x D 1400mm.
- Dimensions with side tables: H 1370 x W 1630 x D 1400mm.
- Weight: 369kg.
- Weight with side-tables: 386kg.
